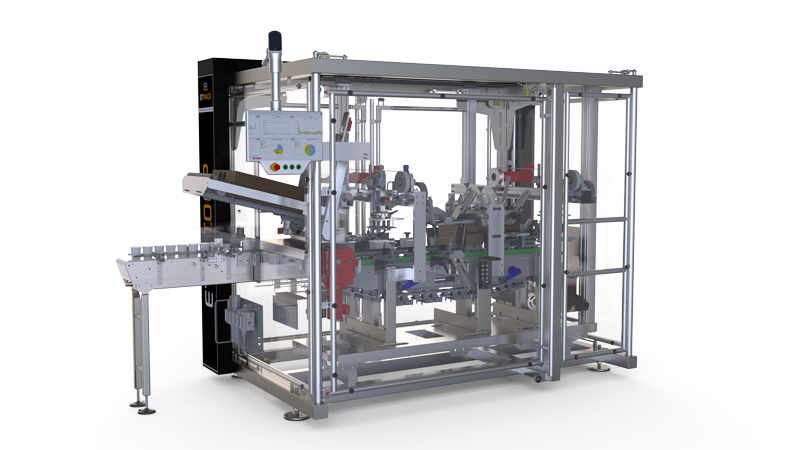

Wraparound cartoner ECOWRAP® ETW100P
GENERAL DESCRIPTION
- Multiformat versatile wraparound cardboard sleever dealing with flat blanks
- Intermittent motion

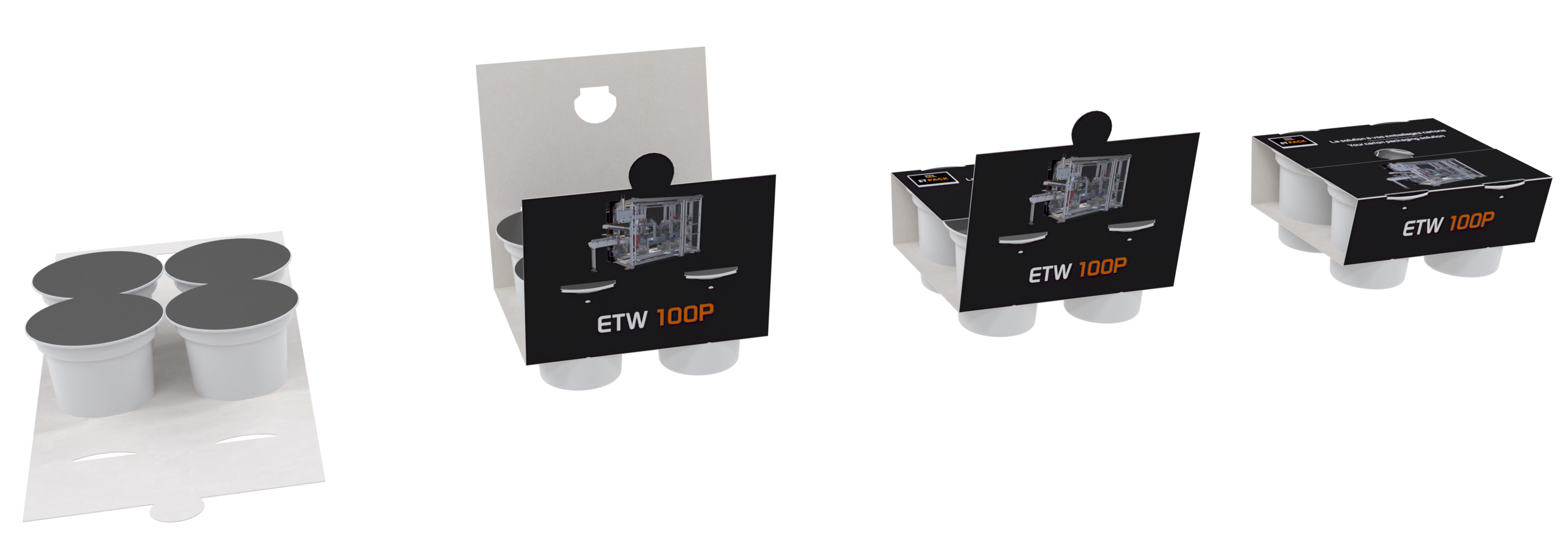

- Partial 4-sided packs with traversing pots

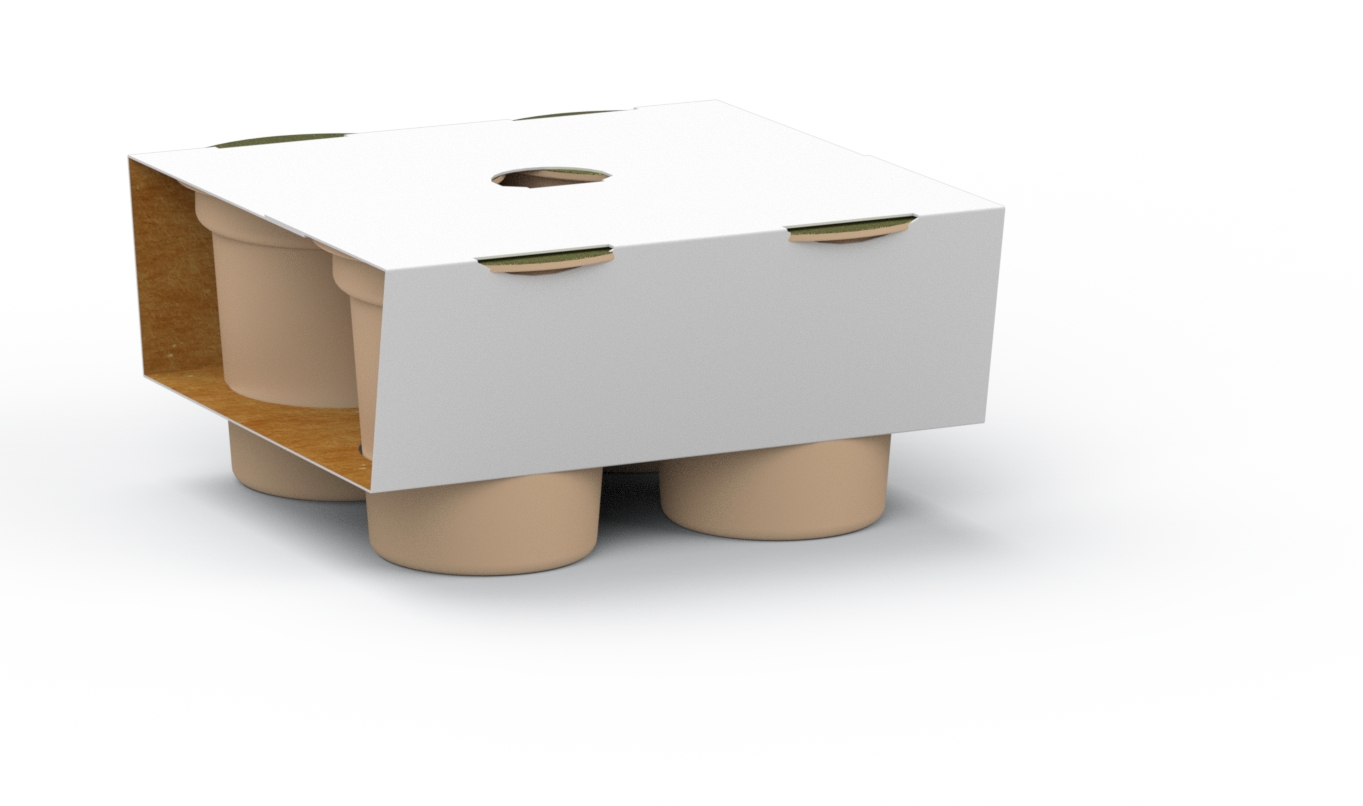

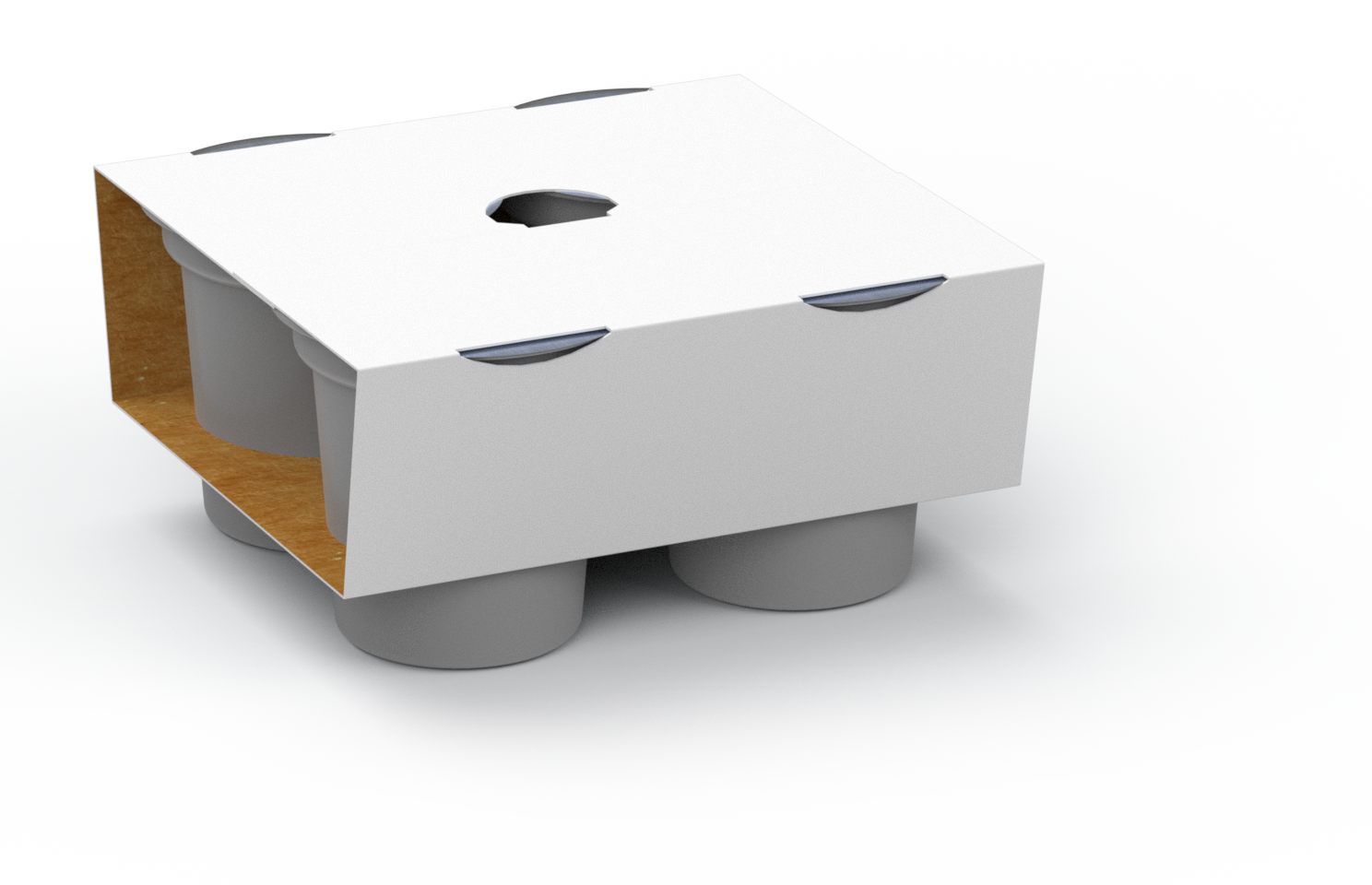

- Top closure by clipping or locking
- Applications: all types of pots (plastic, cardboard, glass)
- Grouping X2-X4-X6-X8...
- Interface management with dosing machines and automatic batch feeding
- Associated peripherals: ergonomic case packing stations, washable modular conveyors, carton formers...
TECHNICAL DATA
- High-capacity cardboard storage
- Pendular feeder
- Interchangeable tools for quick and tool-less series changes
- Loading by 2-axis manipulator
- Imprints adapted to pot diameters
- Gluing underneath the pack by hot-melt glue application system or set of clip jacks
- 10″ color touchscreen
- Axis controller and brushless motors
- Stainless steel design
- Dimensions: 3350 x 1865 x 2050 mm
- Air supply: 6 bars
Solution suitable for small and medium production rates
Up to 35 packs/min
Additional information
| Machine speed | |
|---|---|
| Final packaging | |
| Your product |
