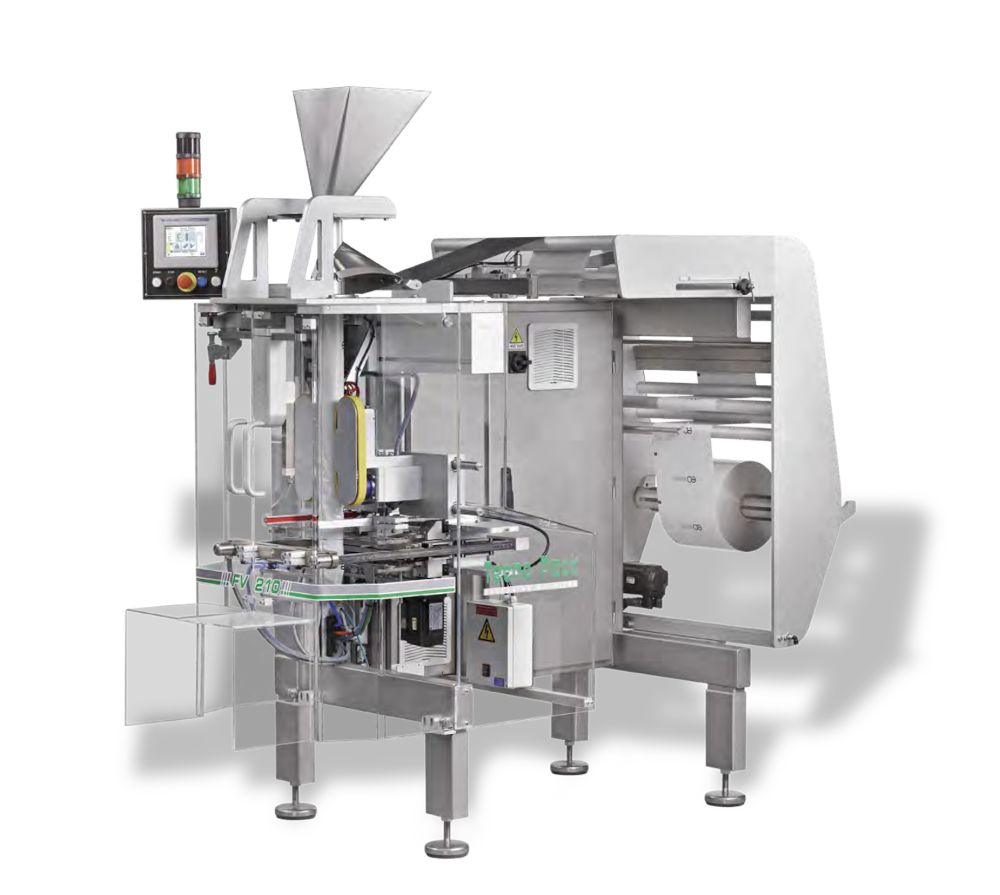

Vertical bagging machine SEV210
GENERAL DESCRIPTION
- Electronic packaging machine cantilever, for easy access and maintenance, controlled with 5 brushless motors
- Robust mechanical steel construction, easy cleaning. Polycarbonate doors with safety protection
- Motorized reel unwinding unit with expansion holder. End of foil reel sensor with machine stop signal
- Sealing jaws polypropylene, paper film and polyethylene film
TECHNICAL DATA
- Reel dimensions:
- Widthmax 720 mm / 28.35 "
- Reel overall size: max 400 mm / 15,75 "
- Reel spindle sizeDimensions: 70 or 76 mm / 2.76 " or 2.99 ".
- Machine dimensions: 2240 x 940 x 1800 mm
88.19 " x 37.01 " x 70.87 "'.
- Motorizations:
- 1 brushless motor for film unwinding control
- 2 brushless motors for film pulling belts
- 1 brushless motor for vertical sealing bar movement
- 1 brushless motor for horizontal sealing unit control
- 1 motor controlled by inverter for the automatic film centring
Pillow bags, quad bags, doypacks
UP TO 120 PPM/MIN
Additional information
| Machine speed | |
|---|---|
| Final packaging |
