Horizontal flowrappers SEH 021BB
GENERAL DESCRIPTION
- Capable of packaging food and non-food products, either individually or in grouping mode on the feeding conveyor belt
- High precision and reliability guaranteed by electronic motor control
- Versatility of use and easy format change, ideal for packaging food and other products
- Cantilever structure that facilitates cleaning and maintenance access
- Options: roller conveyor through the up jaw, printing unit for expiry date, electrical photocell for print register, casters under the machine, gear shift for short/long pitch, double reel holder, polythene version, infeed extension, zig-zag knives, euroslot punch, no product no bag, gussetting device
TECHNICAL DATA
- Product dimensions:
- Length: 10 ÷ 250 mm / 0,39'' - 9,84''
- Width: 60 ÷ 600 mm / 2,36'' - 23,62''
- Height: 1 ÷ 120 mm / 0,04'' - 4,72''
- Reel dimensions:
- Reel width : 520 mm / 20,47''
- Outside diameter: 350 mm / 13,78''
- Core diameter: 68 ÷ 75 mm / 2,68'' - 2,95''
- Machine dimensions: 4860 x 1190 x 1500 mm
191.34" x 46.85" x 59.06
- Weight: 650 kg
- Packaging materials: heat-sealable, coated, cold-sealable, polyethylene
For heavy or adhesive products
UP TO 150 PPM/MIN
Additional information
| Machine speed | |
|---|---|
| Final packaging | |
| Your product | Bakery, Chocolate factory, Confectionery, Convenience food, Frozen products, Fruits & Vegetables, Meat, Non-food product, Pastry |
In the same range
Related products
-
-
Slicer GS60
- Primary packaging, Slicers, Slicers Baggers Clip machines
- Up to 60 products/min
- Product size of up to 170 mm in height
- Frame slicer
- Products with inclusions or sticky components
- Discover
Machine speed Final packaging Your product -
-
-

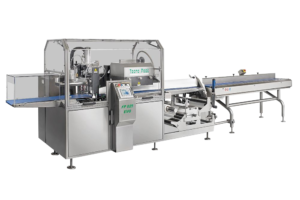

Horizontal flowrappers SEH 025
