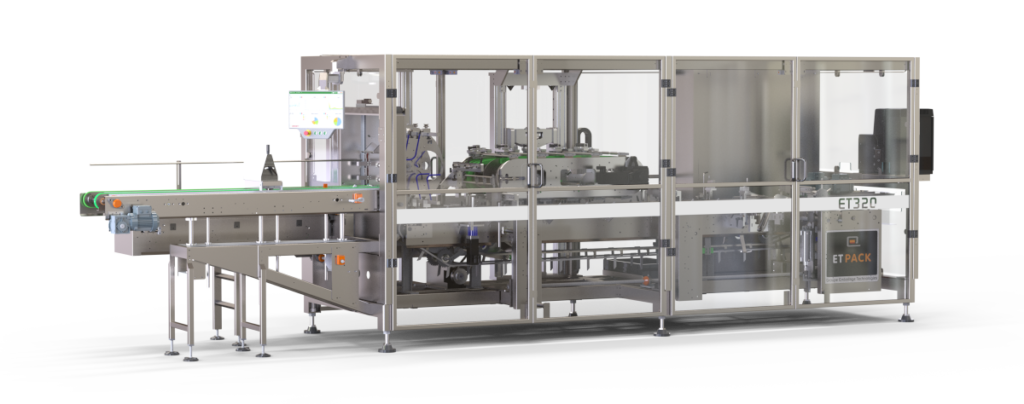

Endload cartoner ET320
GENERAL DESCRIPTION
- Multiformat automatic endload cartoner for box forming, loading and closing
- Continuous motion
- Applications: boxes with or without window
- Dealing with cardboard as well as microfluted board
- Gluing by hot-melt glue melter
- A wide range of automatic infeeds: Unitary products, batching, stacking ...
- Options: in-going buckets conveyor, automatic settings, inkjet marker integration, label application, barcode control, control and rejection of not glued boxes ...
TECHNICAL DATA
- High capacity easy loading blanks magazine
- 4-arm rotary feeder
- Boxes pre-opening vacuum cups
- Push input 12 stations
- HMI up to 15,6''
- Servodriven motors
- Multi-brand Ethercat communication
- Stainless steel frame
- Dimensions: 6800 x 1550 x 2050 mm
267.72" x 61.02" x 81.71
- Classification: IP54
- Power supply: 18 kW
- Pneumatic supply: 6 bars
- Mini/maxi boxes dimensions:
- Length: 120 - 390 mm / 4.72" - 15.35
- Width: 40 - 320 mm / 1.57" x 12.60
- Height : 25 - 110 mm / 0,98 " x 4,33 "
VERSATILITY & EFFICIENCY
Up to 120 boxes/min
Additional information
| Machine speed | |
|---|---|
| Final packaging | |
| Your product | Biscuits, Chocolate factory, Confectionery, Convenience food, Cosmetics and pharma, Frozen products, Meat, Sea products |
